PD565

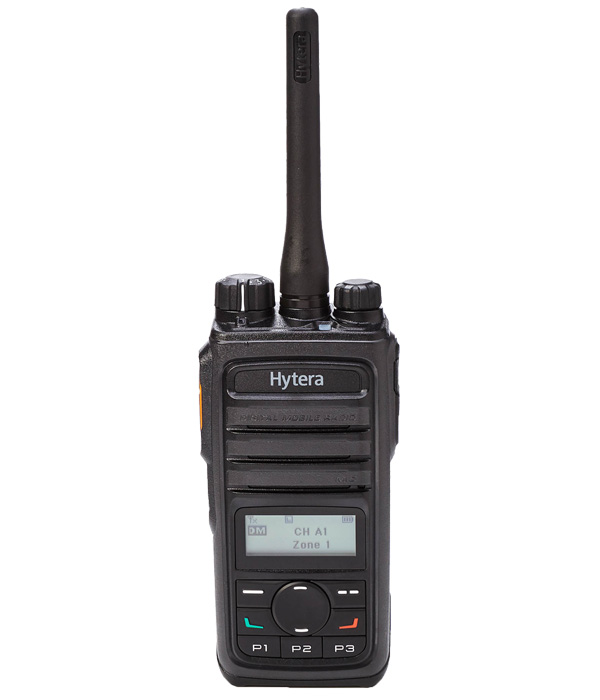

Hytera PD565 Digital Two-Way Radio
The Hytera PD565 digital two-way radio impresses with its safety features and flexibility to support for both digital and analogue communications, ideal for manufacturing, events and hospitality environments.
To discuss our full range of solutions get in touch with Audiolink today by giving us a call on 020 8955 1100 or click ‘Request a call back’ button and fill in our enquiry form.
Hytera PD565 lightweight, robust digital two-way radio.
The PD5 Series is lightweight, compact and packed with functionality. Cost effective, the PD5 series supports both digital and analogue communications, meaning they are the perfect companion for new digital mobile radio users
COMPACT, LIGHTWEIGHT AND EASY TO OPERATE
The PD5 series radios are particularly ergonomic and easy to operate. With a weight of only 260g (PD505) or 280g (PD565), the PD5 series offers a high level of mobility and ideal for use on long shifts.
COST-EFFICIENT WITH SUPERLATIVE VOICE QUALITY
With the combined application of the narrow-band codec and digital technologies for error correction, the PD5 series ensures a superlative voice quality, even in loud environments or in peripheral areas of radio coverage.
LONG BATTERY LIFE
The lithium-ion battery (1500 mAh) included as standard achieves an operating time of at least 16 hours (duty cycle 5-5-90). With the optionally available 1000 mAh battery, this could be increased to up to 20 hours.
SUPPORTS ANALOGUE AND DIGITAL TECHNOLOGY
The PD5 series was developed in compliance with the ETSI mobile radio standard Digital Mobile Radio (DMR). The handheld radios support the conventional DMR mode and can also be operated in manual mode. On top of this, the radios support Hytera XPT radio systems (via chargeable licence). That makes the PD5 series terminals the ideal companion for the move to digital mobile radio.
PSEUDO TRUNKED RADIO
With patented Hytera pseudo trunking, the terminals dynamically utilise the timeslots of a frequency. As a result, the radios can utilise both timeslots in DMO and RMO mode in the conventional DMR operation. This guarantees efficient frequency utilisation.
Features
- One-touch functions to quickly call up preprogrammed text messages, voice calls and supplementary functions
- Support of several expanded analogue signal modes, including HDC1200, 2-tone and 5-tone, for an improved integration in existing analogue radio fleets
- Hytera basic encryption (40, 128 or 256 bit) in digital mode
- Scrambler function in analogue operation
- Leasing function
- Versatile voice calls: individual call, group call, broadcast call, data call,
emergency call - Radio Registration Service (RRS) and Lone Worker feature
- Wireless radio activation/deactivation (enable/disable), Priority interrupt,
and remote monitor function (optional)
The Hytera PD5 Series Two-Way Radios include:
PD505
PD565
Technical Specifications
Frequency range
VHF: 136-174MHz
UHF1: 400-470MHz
UHF3: 350-400MHz
Standard battery
1500 mAh (lithium-ion battery)
Dimensions H x W x D
115 × 54 × 27 mm
Weight (With antenna and standard battery)
approx. 270g
Number of channels
256 (16 zones with 16 channels per zone)
Channel spacing
12.5 / 25 kHz (analogue)
12.5 kHz (digital)
Environmental Specifications
Mil spec: 810 C, D, E, F, G
IP Rating: IP54
Antennas
Hytera AN0495W04
UHF Antenna (470-520MHz)
Hytera AN0435W09
UHF Antenna (400-470MHz)
Hytera AN0155H08
VHF Antenna (136-174MHz/1575MHz)
Hytera AN0141H06
VHF Antenna (136-147MHz)
Audio
Hytera EHM15
D-Style Earpiece with In-line PTT and Microphone (Black)
Hytera ES-01
Earbud without Earpiece (Receive-Only)
Hytera EH-02
Swivel Style Earpiece (Receive-Only)
Hytera SM26M1
Remote Speaker Microphone (without emergency button)
Carry Solutions
Hytera NCN011
Nylon Carrying Case
Hytera BC08
Belt Clip
Hytera BRK20
Wall-Mount Installation Kit
Charging and Power
Hytera BL2010
Lithium-Ion Battery (2000mAh)
Hytera BL1504
Lithium-Ion Battery (1500mAh)
Hytera MCA08
Six-Unit Charger Including Power Adapter
Hytera CH10A07
MCU Rapid-Rate Charger
Hytera CH10A06 and PS2005
Dual Charger with two units designed to charge both Lithium-ion & NI-MH batteries.
