WAVE PTX TLK 150

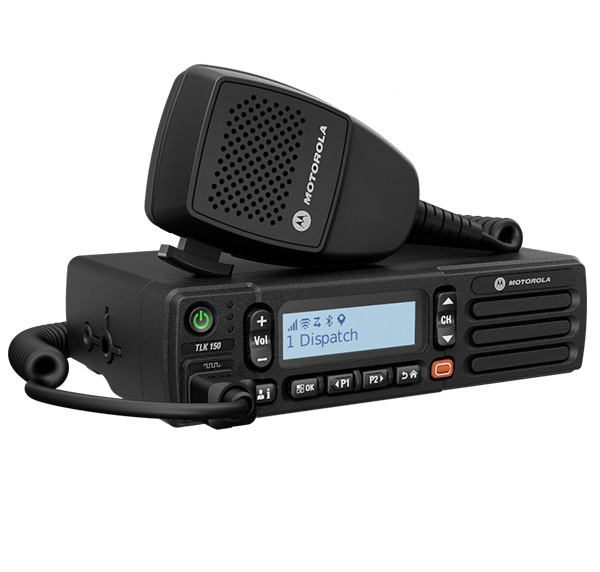

Motorola Solutions WAVE PTX TLK 150 Mobile Radio
Easy to use and manage. Built for the job – safely operate in vehicle. Europe-wide push-to-talk.
Get your team up and running quickly. Combine the broad coverage of a Europe-wide broadband network* with the ease of push-to-talk radio communications.
The Motorola TLK150 allows you to safely operate while driving with one button push-to-talk. Manage talk groups and subscriptions in real time. Increase coverage, connections, and productivity without expanding infrastructure.
There’s no costly or time-consuming spectrum licensing, or manual programming required.
Europe-wide push-to-talk
Increase productivity in-country and cross-border with a Europe-wide push-to-talk comms network.
Easy to use and manage
Simple user controls make communication instant and managing calls easy.
Built for the job
Get the job done with a two-way radio designed for clear audio and location tracking in a rugged, compact form factor.
Features
- Private and group push-to-talk
- Over-the-air device management
- 4G LTE, 3G and Wi-Fi connectivity
- GPS location tracking
- Loud and clear audio
- Real-time presence
- Bluetooth® enabled
- 12V/24V dual voltage support
*Coverage limited to EU only and will vary depending on conditions. TLK 100 and TLK 150 are compatible with WAVE PTX cloud-based deployments only.
Technical Specifications
Network
4G LTE: 1,2,3,4,5,7,8,13,17,19,20,21,28
3G UMTS: 1,2,5,8
Channel Capacity
96 Channels
Contact List
300 contacts
Dimensions (W x H x L)
169mm x 44mm x 93mm
Weight
640 g
Voice Codec
OPUS
Bluetooth®
Bluetooth V4.2 BR/EDR + BLE
GPS
GNSS / A-GPS
(GPS, GLONASS, Galileo, BeiDou)
Wi-Fi
802.11 a/b/g/n – 2.4 / 5.0 GHz
Apps Supported
Powered by WAVE PTX
Encryption
AES-256
Antennas
LTE antennas – External
GNSS antenna – External
Wi-Fi/Bluetooth antenna – Internal
Connectors
Front RJ45 connector for wired mobile microphone
Back antenna SMA connectors
Back 20-pin MAP connector for other accessories
Rated Audio
4 W (Internal)
16 W (External – 4 ohms)
Audio Distortion @ Rated Audio
3% (Typical)
Operating Temperature
-20°C to +60°C
Storage Temperature
-40°C to +85°C
Thermal Shock
Per MIL STD-810
Humidity
Per MIL STD-810
ESD
IEC61000 – 4-2 Level 4
Dust and Water Intrusion
IEC60529 – IP54 Cat 2
Packaging Test
Per MIL STD-810
IP Rating
IP54 IEC60529
