SL1600

Categories: Digital Portable Two-Way Radios, Motorola Solutions Tag: Motorola Solutions - Digital Portable Two-Way Radios
Description
motorola solutions logo

MOTOTRBO™ SL1600 Digital Two-Way Radio

The MOTOTRBO SL1600 digital two-way radio provides reliable push-to-talk communication for the mobile, everyday user in an ultra-slim and rugged profile.

To discuss our full range of solutions get in touch with Audiolink today by giving us a call on 020 8955 1100 or click ‘Request a call back’ button and fill in our enquiry form.

DIGITAL PORTABLES | REPEATERS | LICENSE FREE RADIOS | ANALOGUE | ACCESSORIES

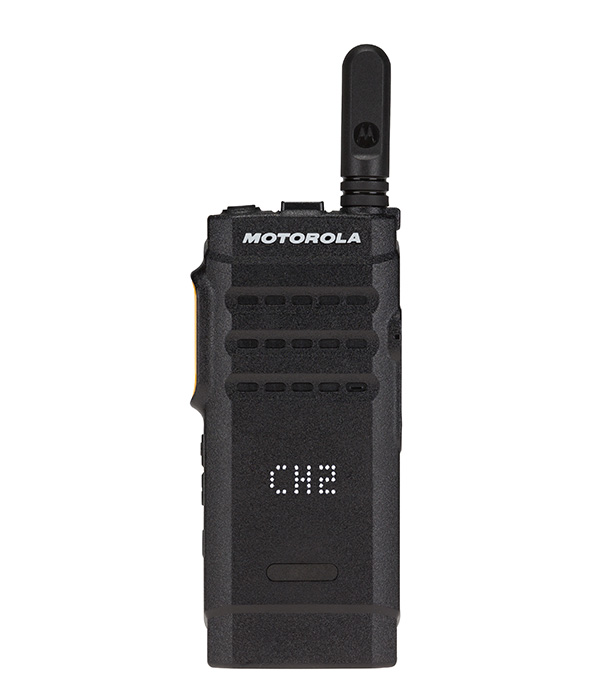

mototrbo sl1600 portable

motorola sl1600 brochure

The SL1600 is boldly designed to keep you efficiently connected.

The MOTOTRBO SL1600 digital two-way radio provides reliable push-to-talk communication for the mobile, everyday user in an ultra-slim and rugged profile. Whether you’re working in the field or at a black-tie event, the SL1600 is boldly designed to keep you efficiently connected.

Measuring only 22mm thick, the SL1600 is ultra-portable. A stubby antenna, curved edges and rugged frame make the SL1600 the perfect work partner. It can be easily carried in pockets or bags without snagging or bulging.

Designed for easy and intuitive use, the SL1600 has a side volume control, dedicated power button, prominent push-to-talk button, and top toggle channel switch to enable quick one-hand access. Channel “fast toggle” allows users to scroll through 10 channels at a time.

The SL1600 is outfitted with the latest technology for performance and ease of use. The shatterproof Active View display uses a matrix of LEDs behind the radio housing to communicate radio information and shuts off when not in use to conserve battery life. The SL1600 features Range Max technology: an advanced radio design and patented antenna which delivers enhanced range while maintaining a slim profile and long battery life.

The SL1600 is built to last. IP54 rated for dust and water resistance, it can be used even in harsh environments. This radio can survive many drops and tumbles. It has also been proven tough in Motorola’s gruelling Accelerated Life Test, where the radio is tested against a simulated 5 years of hard service before it is accepted.

ULTRA-SLIM

Measuring only 22mm thick, the SL1600 redefines portability. It can be carried easily in a pocket or bag without catching or bulging.

SIMPLE OPERATION

The SL1600 features a separate power button, top channel toggle switch, side volume control buttons, and prominent push-to-talk button to support one-hand radio operation.

DUAL CAPACITY DIRECT MODE

Utilise the power of the 2-slot TDMA DMR standard to double the capacity of your 12.5 kHz channel without the need for a repeater.

VOICE ANNOUNCEMENT

Audible prompts confirm operations on your radio, allowing you to keep your eyes on the job.

MicroUSB CONNECTIVITY

Efficient charging and easy programming.

ACTIVE VIEW DISPLAY

Shatterproof Active View display uses hidden LED lighting to communicate channel, radio, and volume information crisply in both daytime and nighttime situations.

ANALOG/DIGITAL

The SL1600 features a separate power button, top channel toggle switch, side volume control buttons, and prominent push-to-talk button to support one-hand radio operation.

RANGE MAX RECEIVER

An advanced radio design and patented antenna which delivers enhanced range while maintaining a slim profile and long battery life.

Features

  • Voice announcement
  • Group call
  • Programmable buttons
  • Talkaround
  • One to one calling
  • Missed call alerts
  • IP54 Rated

› ENQUIRE ABOUT THIS PRODUCT

Technical Specifications

Frequency range
VHF: 136-176 MHz
UHF:403-470 MHz

Power output
1W (Minimum)
2W (Maximum, Analogue)
3W (Maximum, Digital)

Dimensions H x W x D (with standard battery)
126 X 55 X 22 mm (4.95 X 2.17 x 0.87 in)

Weight (With standard battery)
VHF: 169g (5.96 oz)
UHF: 166g (5.84 oz)

Number of channels
99 channels

Channel spacing
12.5, 20, 25

Environmental Specifications
Mil spec: 810 C, 810 D, 810 E, 810 F, 810 G
IP Rating: IP54

  • Antennas
  • Audio
  • Carry Solutions
  • Charging and Power

Antennas

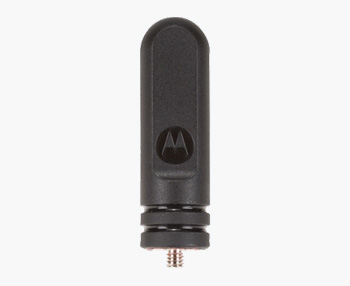

Motorola PMAE4095

UHF Stubby Antenna (430-470MHz)

Motorola PMAE4095

Motorola PMAE4094

UHF Stubby Antenna (420-445MHz)

Motorola PMAE4094

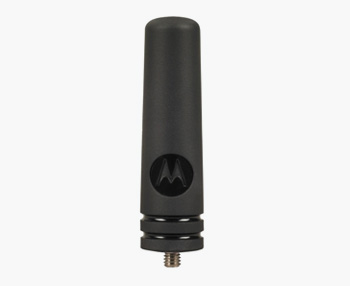

Motorola PMAD4146

VHF Stubby Antenna (156-174MHz)

Motorola PMAD4146

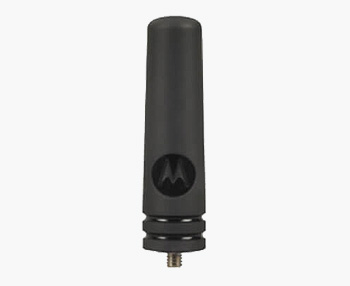

Motorola PMAD4144

VHF Stubby Antenna (136-144MHz)

Motorola PMAD4144

Audio

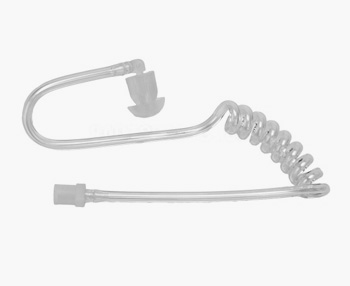

Motorola RLN6242

Replacement Quick Disconnect Acoustic Tube

Motorola RLN6242

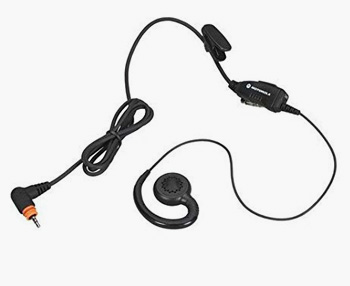

Motorola PMLN7189

Swivel earpiece with in-line mic and PTT

Motorola PMLN7189

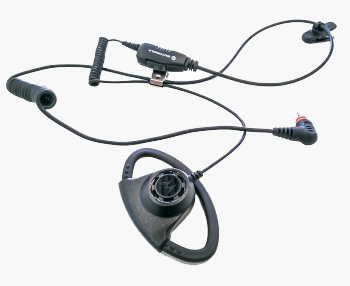

Motorola PMLN7159

Adjustable D Style Earpiece with Inline Mic/PTT

Motorola PMLN7159

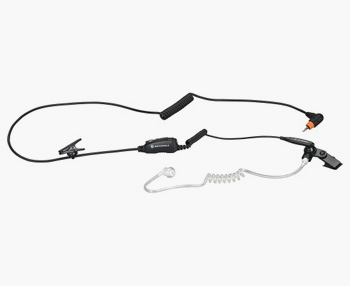

Motorola PMLN7158

Surveillance earpiece with Mic and PTT Combined (Black)

Motorola PMLN7158

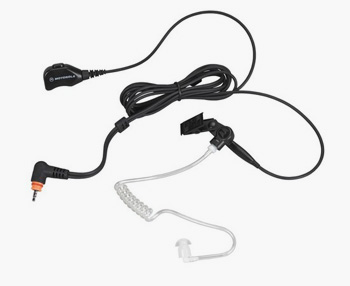

Motorola PMLN7157

2-Wire Earpiece with clear acoustic tube (Black)

Motorola PMLN7157

Carry Solutions

Motorola PMLN7190

Radio Carry Holder with Swivel Belt Clip

Motorola PMLN7190

Motorola PMLN7128

Swivel Belt Clip (Heavy Duty)

Motorola PMLN7128

Charging and Power

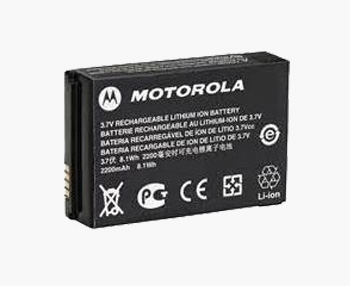

Motorola PMNN4468

Li-Ion 2300mAH Battery

Motorola PMNN4468

Motorola PMLN7162

Multi-Unit Desktop Charger (UK Plug)

Motorola PMLN7162

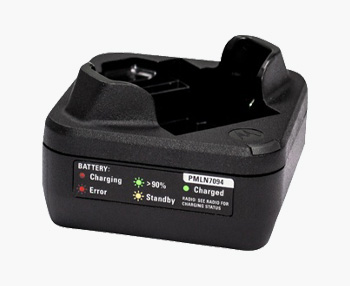

Motorola PMLN7163

Single Unit Charger(UK)

Motorola PMLN7163

Motorola PS000042A13

Switch Mode Power Supply (UK)

Image unavailable
  • To discuss your requirements or to find out more about Audiolink’s services please fill in the enquiry form below:

  • This field is for validation purposes and should be left unchanged.
manufacturer logos
footer logos
Additional information
Manufacturer

Motorola Solutions

Motorola Solutions

SL1600
