TK-3701DT
Kenwood Compact TK-3701DT PMR446/dPMR446 Licence Free Two-Way Radio

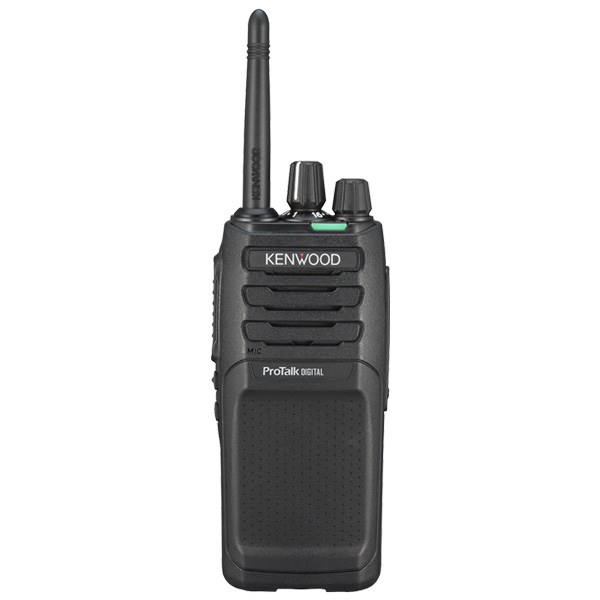

The Kenwood TK-3701DT is a licence-free UHF digital transceiver featuring both digital dPMR446 and analogue PMR446 communications. The ready-to-use package comes with a transceiver, rechargeable battery, battery charger, mains adapter and belt clip. The TK-3701DT is perfect for professional applications requiring a license-free, stylish, compact, light and easy to use digital two-way radio.
To discuss our full range of solutions get in touch with Audiolink today by giving us a call on 020 8955 1100 or click ‘Request a call back’ button and fill in our enquiry form.
DIGITAL & ANALOGUE
The TK-3701DT features the latest digital dPMR446 technology with a total of 48 preset channels (32 digital and 16 analogue) in 3 zones (2 digital and 1 analogue).
NO LICENCE REQUIRED
Licence-free dPMR446 and PMR446 operation in an all-in-one package that’s ready for immediate use.
INDUSTRIAL STRENGTH CONSTRUCTION
Compliant with IP54/55 and US MIL-STD 810 C, D, E, F, and G standards.
POWERFUL YET NATURAL SOUND OUTPUT
AMBE+2™ vocoder for natural audio with minimum delay; BTL audio amplifier for powerful 1 watt output.
SECOND PTT
Make use of the Second PTT for giving different instructions to different staff as the radio allows the use of main channel plus another channel*.
*PC programming required.
Features
- Digital and Analogue
- License-free dPMR446 and PMR446 operation in an all-in-one package that’s ready for immediate use
- 48 Channels pre-programmed with the 16 Analogue PMR446 Frequencies plus 32 dPMR446 Digital Frequencies
- AMBE+2 Vocoder for Natural Sounding Digital Voice
- QT/DQT Signalling Formats
- Built-In Voice Scrambler
- “Industrial Strength” Construction, to US MIL-STD Specification 810G and IP54/55
- Supplied with rechargeable battery, battery charger and belt clip
Technical Specifications
Frequency range
PMR446 License Free
446 – 446.2 MHz
RF Power Output
ERP 500 mW
Number of channels
48 Channels
3 Zones
Channel Spacing
Analogue: 12.5 kHz
Digital: 6.25 kHz
Battery Life (with KNB-45L)
16 hours – battery save ON
15 hours – battery save OFF
– 5-5-90 duty cycle
Dimensions W x H x D (with KNB-45L battery)
54 x 123 x 33.5 mm
Weight (with KNB-45L battery)
282g
Environmental Specifications
Mil spec: 810 G
IP Rating: IP54/55
